UNPKD RAM STEM MOUNT SHORT ARM & RAM X-GRIP

Descriere

RAM-B-176-A-UN7U este alcatuit dintr-o baza care este conceputa pentru a se incadra in gaura cilindrica a furcii, brat de dimensiune scurta cu prindere dubla si suportul universal X-Grip® pentru telefoane cu dimensiuni normale. Suportul de prindere este un sistem cu soclu patentat si bila cu diametrul de 1" de care se leaga bratul cu prindere dubla care are puncte de reglare la ambele capete. Reglarea bratului va permite sa mutati montantul in pozitia optima de vizionare. Suportul X-Grip® IV echipat cu arc se extinde si se strange permitand o potrivire perfecta a telefonului. X-Grip® este un dispozitiv de prindere recomandat pentru aplicatii in exterior. Este important sa verificati dimensiunile dispozitivului dvs. portabil cu tot cu husa exterioara pentru determinarea dimensiunii totale.

OVERVIEW

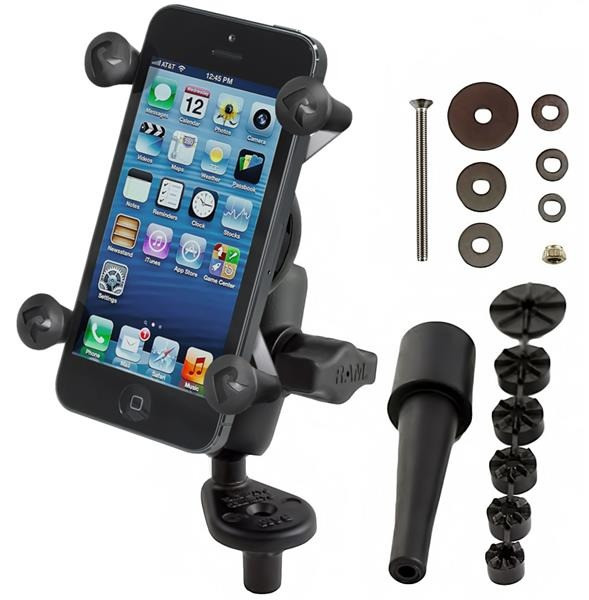

Designed to fit into the cylindrical bore wall of fork stems that measure 12mm to 38mm (.5” to 1.49”) in diameter, the RAM-B-176-A-UN7U consists of a fork stem base, short length double socket arm, and the popular spring-loaded RAM® X-Grip® phone holder. The RAM® X-Grip® features an 'X' design that expands and contracts to provide a perfect fit for your device – even if it's in a case. Made of high-strength composite and stainless steel, this version of the RAM® X-Grip® fits phones ranging from 1.87" to 3.25" in width and keeps your device completely functional and accessible. RAM® ball and socket technology allows for near-infinite adjustability to achieve the ideal viewing angle – while also extending the life of your phone by providing shock and vibration damping. For outdoor applications, the RAM® X-Grip® includes a device tether that is recommended for added security and peace of mind.

HARDWARE INCLUDED

(1) Optional Tether

(1) Glue Tube for Rubber Caps

(1) Expansion Plug for 12mm - 38mm (.5" - 1.49") Fork Stem Holes

(1) M5 x 60mm Machine Screw

(1) Steel Washer Set

(1) Nut Pocket Washer Set

(1) Brass Nylock Nut

HOLDER DIMENSIONS

Width Range: 1.875" - 3.25"

Depth Range: .875" max

SOCKET-TO-SOCKET LENGTH

1.75"

BALL/SOCKET SIZE

B Size (1")

WEIGHT CAPACITY

2 lbs

MATERIALS

Marine-grade aluminum

High strength composite

Stainless steel

PACKAGING TYPE

Poly Bag

WEIGHT

0.6 lbs.
