UNPKD RAM V BASE BALL AND STRAPS 1/2"-2"

Descriere

OVERVIEW

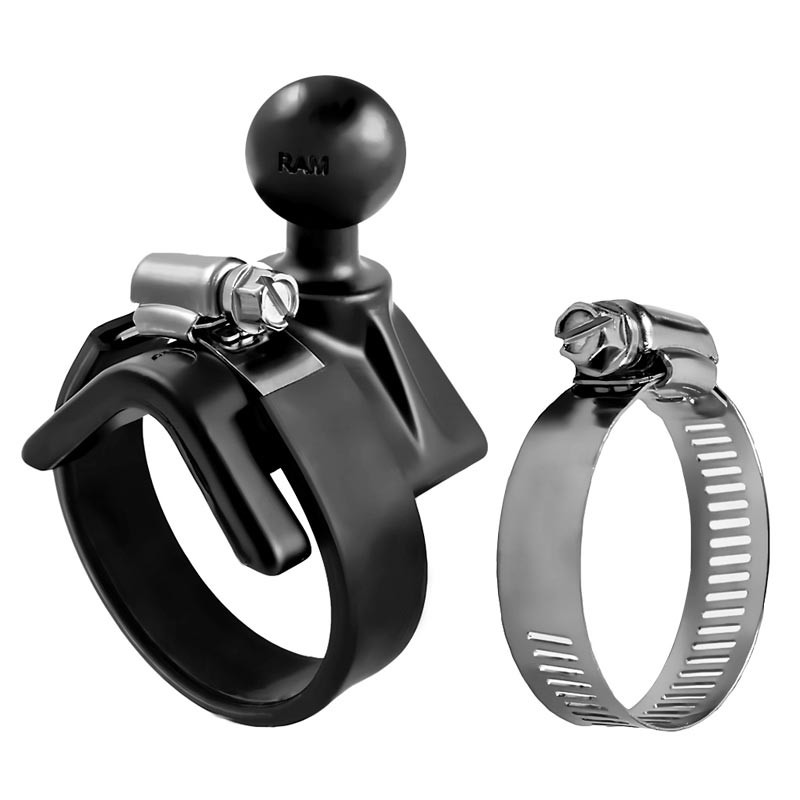

The RAM-B-108BU consists of a B size 1" rubber ball connected at a right angle to a V-shaped base, and accommodates rails from 1" to 2.1" in diameter. To mount the RAM-B-108BU base, place the saddle-shaped plate on the rail and then wrap the metal clamp strap around the rail and plate. Tighten the knob on the metal strap with a screwdriver until it has a firm hold on the rail. The RAM-B-108BU is an alternative mounting base for Beechcraft airplanes with a “throw over yoke."

HARDWARE INCLUDED

(1) #20 Worm Drive Strap Clamp

(1) #28 Worm Drive Strap Clamp

(1) 6" Rubber Strip

CLAMP RANGE

1" - 2.1" diameter

BALL/SOCKET SIZE

B Size (1")

WEIGHT CAPACITY

2 lbs

MATERIALS

Marine-grade aluminum

PACKAGING TYPE

Poly Bag

WEIGHT

0.28 lbs.
