RAM RAIL U-BOLT MOUNT UNIVERSAL RAM X-GRIP

Descriere

RAM-B-149Z-UN7U este alcatuit dintr-o baza u-bolt cu bolturi metalice zincate, un brat cu prindere dubla si un suport X-Grip® IV universal cu arc pentru telefoane cu dimensiuni mai mari. Inclus in acest pachet este dispozitivul pentru prindere pe bare de la 0,50 "la 1,25" in diametru. Baza include capace negre care se vor monta peste capetele expuse ale u-boltului. Adaptorul compozit inclus poate ingusta bara la minim 0,5 ". Suportul este proiectat cu un sistem patentat RAM cu bile de cauciuc B cu diametrul de 1" si soclu care are puncte de reglare la ambele capete ale bratului dublu, permitand reglarea aproape infinita si unghiuri de vizualizare perfecte. Suportul X-Grip® IV echipat cu arc se extinde si se strange permitand o potrivire perfecta a telefonului. X-Grip® este un dispozitiv de prindere recomandat pentru aplicatii in exterior. Este important sa verificati dimensiunile dispozitivului dvs. portabil cu tot cu husa exterioara pentru determinarea dimensiunii totale.

OVERVIEW

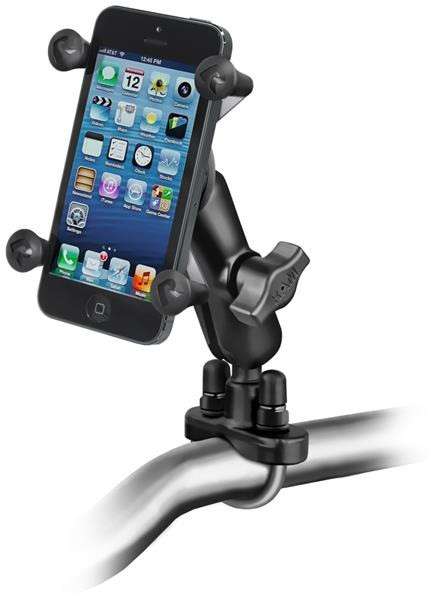

The RAM-B-149Z-UN7U consists of a zinc coated u-bolt base, double socket arm and universal X-Grip® cradle. Included in this package is hardware that will accommodate rails from 0.50" to 1.25" in diameter. The base includes black cover caps to be placed over the exposed ends of the u-bolt. The mount is designed with a RAM 1" diameter patented rubber ball and socket system that has adjustment points at both ends of the double socket arm; this allowing for almost infinite adjustment and perfect viewing angles. The included composite rail adapter can narrow the rail to a minimum width of 0.5". The included X-Grip® cradle has a clean and clever four leg design that sports great holding power without hiding your phone behind foam pads and plastic. The spring loaded X-Grip® cradle expands and contracts, allowing for a perfect custom fit of your cell phone. The perfect complement to the modern sleek interior of today's vehicles, the RAM X-Grip® is the cell phone cradle evolved. The X-Grip® includes a device tether recommended for outdoor applications. The cradle is compatible with handheld devices that will fit the dimensions listed below. It is important to verify the dimensions of your handheld device with a case/sleeve/skin when determining the overall size.

HARDWARE INCLUDED

(1) Optional Tether

(1) Glue Tube for Rubber Caps

(1) 1/4"-20 U-Bolt for .5" - 1" Rails

(1) 1/4"-20 U-Bolt for 1" - 1.25" Rails

(2) 1/4"-20 Nylock Nuts

(2) Rubber Caps

(1) U-Bolt Spacer

HOLDER DIMENSIONS

Width Range: 1.875" - 3.25"

Depth Range: .875" max

CLAMP RANGE

.5" - 1.25" diameter

SOCKET-TO-SOCKET LENGTH

3"

BALL/SOCKET SIZE

B Size (1")

WEIGHT CAPACITY

2 lbs

MATERIALS

Marine-grade aluminum

High strength composite

Stainless steel

PACKAGING TYPE

Poly Bag

WEIGHT

0.78 lbs.

ADDITIONAL INFORMATION

Dispozitive compatibile:

Apple

iPhone 6s

iPhone 7

iPhone 8

iPhone SE

iPhone X

iPhone Xs

iPhone Xr

iPhone 11

iPhone 11 Pro

iPhone 12

iPhone 12 mini

iPhone 12 Pro

Blackberry

DTEK 50

DTEK 60

KEYone

Garmin

Approach G8

Edge 1030

Edge Explore 1000

Google

Pixel

Pixel XL

Pixel 2

Pixel 3

Pixel 3a

Pixel 4

Pixel 4 XL

Pixel 4a

HTC

U11

U11 life

Huawei

Mate 20 Pro

P30 Pro

LG

Aristo

Aristo 2

Exalt LTE

G5

G5 Silver

G6

G6+

G7 ThinQ

G8 ThinQ

Grace LTE

K20

K20 Plus

K20 V

K3

K3 2017

K8 2017

Phoenix 3

Q6

Rebel 2 LTE

Rebel 3 LTE

Risio 2

Tribute Dynasty

Tribute HD

V30

V35 ThinQ

V40 ThinQ

Wine LTE

Zone 4

Motorola

moto e4

moto g5s plus

moto g6

moto g7 power

moto X2

moto X4

razr

Nokia

1

2

3

5

6

8

9 PureView

216

230

150 Dual SIM

3310 Dual SIM

7 plus

8 Sirocco

8110 4G

OnePlus

6T

7

7T

7T Pro

7 Pro

Samsung

Galaxy A3

Galaxy A3 (2016)

Galaxy A3 (2017)

Galaxy A5

Galaxy A5 (2016)

Galaxy A5 (2017)

Galaxy A6

Galaxy A6+

Galaxy A7 (2016)

Galaxy A8+

Galaxy A8 (2018)

Galaxy A8+ (2018)

Galaxy A10

Galaxy A10e

Galaxy A10s

Galaxy A11

Galaxy A20

Galaxy A20e

Galaxy A30

Galaxy A40

Galaxy A50

Galaxy A50s

Galaxy AMP 2

Galaxy AMP Prime

Galaxy AMP Prime 2

Galaxy C5

Galaxy E5

Galaxy Express 3

Galaxy Express Prime 2

Galaxy Grand Max

Galaxy J1

Galaxy J1 (2016)

Galaxy J2

Galaxy J2 (2016)

Galaxy J2 (2017)

Galaxy J3 (2016)

Galaxy J3 (2017) International

Galaxy J3 Emerge

Galaxy J3 Prime

Galaxy J3 V

Galaxy J5

Galaxy J5 (2016)

Galaxy J5 (2017)

Galaxy J7 (2016)

Galaxy J7 (2017)

Galaxy J7 Perx

Galaxy J7 Prime

Galaxy J7 Prime 2

Galaxy Luna

Galaxy Note 8

Galaxy Note Fan Edition

Galaxy Note 10

Galaxy Note20

Galaxy On NXT

Galaxy On5

Galaxy On7 Prime

Galaxy On8

Galaxy S5

Galaxy S5 Neo

Galaxy S6

Galaxy S6 Active

Galaxy S6 Edge

Galaxy S6 Edge+

Galaxy S7

Galaxy S7 Active

Galaxy S7 Edge

Galaxy S8+

Galaxy S9

Galaxy S9+

Galaxy S10

Galaxy S10+

Galaxy S10e

Galaxy S20

Galaxy S20+

Galaxy S20 Ultra 5G

Galaxy V Plus

Galaxy Xcover 3

Galaxy Xcover 4

W2017

Z1

Z2

Z3

Z4

Sony

Xperia L1

Xperia X

Xperia X Compact

Xperia X Performance

Xperia XA

Xperia XA1

Xperia XA1 Plus

Xperia XA2

Xperia XZ

Xperia XZ1

Xperia XZ1 Compact

Xperia XZ2

Xperia XZ2 Compact

Xperia XZ3

Xperia XZs

Xperia Z3

Xperia Z3+

Xperia Z5

Xperia Z5 Compact

Xiaomi

Mi 9

Mi 9 Explorer

Mi Mix 2S

Mi Mix 3

ZTE

Axon 9 Pro

Axon 10 Pro
