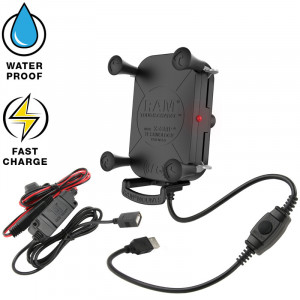

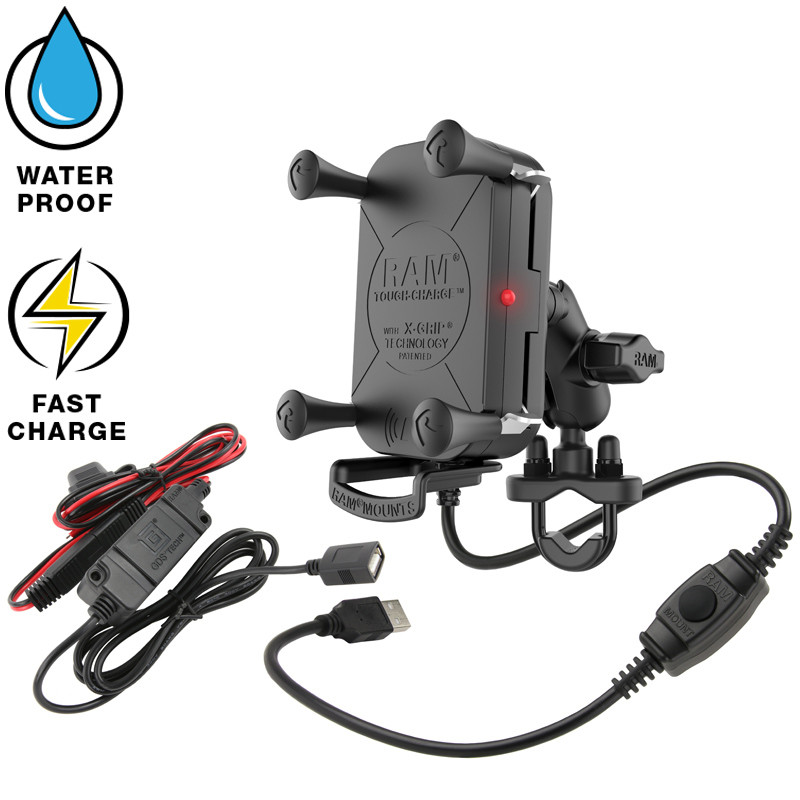

RAM TOUGH-CHARGE WIRELESS WITH X-GRIP TECHNOLOGY WITH UBOLT MOUNT AND MOTORCYCLE HARDWIRE CHARGER

Descriere

OVERVIEW

The RAM® Tough-Charge™ with X-Grip® Technology is the world's first patented, universal waterproof wireless charging cradle for phones. Designed with spring-loaded RAM® X-Grip® Technology, this cradle features an 'X' design that expands and contracts to secure nearly any phone while taking advantage of Qi wireless phone charging. All four arms feature rubber-coated caps that hold your phone firmly in place, and the open design keeps buttons and switches accessible on the sides of phones. To insert your device, simply squeeze the arms on one side of the cradle and place your phone inside before releasing the arms. This Qi wireless charging cradle ensures your compatible phone charges no matter what position it's placed at. For added security and peace of mind, a device tether is included that’s recommended for outdoor applications. In addition, a support leg can be adjusted to the ideal position or removed altogether. This RAM® Tough-Charge™ with X-Grip® Technology wireless charging handlebar kit includes a B size diamond base featuring a 1” rubber ball, short length double socket arm, and zinc-coated U-bolt base. U-bolt hardware accommodates rails from .5" to 1.25" in diameter. The connected Type-A male pigtail connector features an in-line switch that allows you to turn off the wireless charging module when not in use. For in-vehicle charging, attach the pigtail to the included 1.2m Type-A male to Type-A female extension cable. This kit includes a hardwire charger.

HARDWARE INCLUDED (1) Safety Tether

(1) Glue Tube for Rubber Caps

(1) Cradle Leg

(1) Cradle Leg Cover

(1) Silicon sleeve for USB waterproof connection

(1) 1.2 Meter USB Extension Cable

(4) Small zip ties

(4) Large zip ties

(1) 1/4"-20 U-Bolt for .5" - 1" Rails

(1) 1/4"-20 U-Bolt for 1" - 1.25" Rails

(2) 1/4"-20 Nylock Nuts

(2) Rubber Caps

(1) U-Bolt Spacer

HOLDER DIMENSIONS Width Range: 2.375" - 3.25"

Depth Range: .875" max

CLAMP RANGE .5" - 1.25" diameter

SOCKET-TO-SOCKET LENGTH 1.75"

BALL/SOCKET SIZE B Size (1")

WEIGHT CAPACITY 2 lbs

MATERIALS Marine-grade aluminum

High strength composite

Stainless steel

PACKAGING TYPE Retail Box

POWER SPECIFICATIONS Input Power:5V-2A; 9V-1.67A

Output: 5W / 7.5W / 10W

Conversion Efficiency: 85% Max

Transmitting Distance: 5-8mm

Working Frequency: 110-205KHZ

Product Standard: WPC v.1.2.4

QI Compatible

Compatible with QC2.0/QC3.0 power supplies

OUTPUT CONNECTOR TYPE USB Type-A Male

INPUT CABLE LENGTH 20" with optional 1.2M extension cable

COMPLIANCE Over current protection, short circuit protection and over temperature protection

CERTIFICATIONS FCC, IC, CE, e-Mark, WEEE, RCM, and RoHS Compliant

WARRANTY STATUS 1 year warranty

COMPATIBLE DEVICES

Apple Blackberry LG Nokia Galaxy Note 5 Galaxy S7 Xperia XZ3

iPhone 11 Evolve X G6 8 Sirocco Galaxy Note 8 Galaxy S7 Active Xiaomi

iPhone 11 Pro Google G6+ 9 PureView Galaxy Note 9 Galaxy S7 Edge Mi 9

iPhone 11 Pro Max Pixel 3 G7 ThinQ Panasonic Galaxy S10 Galaxy S8 Mi 9 Explorer

iPhone 8 Pixel 3 XL G8 ThinQ Eluga X1 Pro Galaxy S10 5G Galaxy S8+ Mi Mix 2S

iPhone 8 Plus Pixel 4 G8S ThinQ Razer Galaxy S10+ Galaxy S9 Mi Mix 3

iPhone X Pixel 4 XL V30 Phone 2 Galaxy S10e Galaxy S9+ ZTE

iPhone Xr Huawei V35 ThinQ Samsung Galaxy S6 Sony Axon 10 Pro

iPhone Xs Mate 20 Pro V40 ThinQ Galaxy Note 10 Galaxy S6 Edge Xperia XZ2 Axon 9 Pro

iPhone Xs Max P30 Pro V50 ThinQ Galaxy Note 10 Plus Galaxy S6 Edge+ Xperia XZ2 Compact
