RAM QUICK-GRIP WIRELESS WITH B BALL AND MOTORCYCLE HARDWIRE CHARGER

Descriere

OVERVIEW

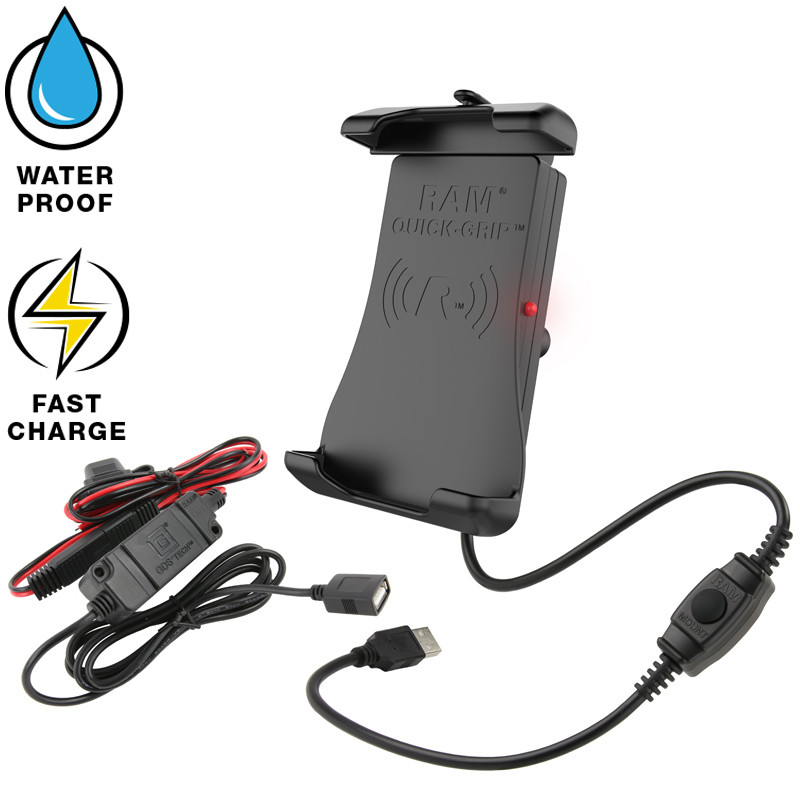

The RAM® Quick-Grip™ Wireless is a patented, universal water resistant wireless charging cradle for phones. As part of the spring-loaded RAM® Quick-Grip™ family, this cradle allows for single-handed placement and removal of your phone while taking advantage of Qi wireless phone charging. Both the top and bottom cups feature rubber to help hold your phone firmly in place. To insert your device, use your phone to push the top cup upward and then gently place your device against the cradle for a secure fit. This Qi wireless charging cradle ensures your compatible phone charges as long as it’s within the listed compatible dimensions. For added security and peace of mind, a device tether is included that’s recommended for outdoor applications.This RAM® Quick-Grip™ Wireless kit for motorcycles includes a B size diamond base featuring a 1” rubber ball – perfect for attaching to your choice of B size RAM® double socket arm. The connected Type-A male pigtail connector features an in-line switch that allows you to turn off the wireless charging module when not in use. For in-vehicle charging, attach the pigtail to the included 1.2m Type-A male to Type-A female extension cable. This kit includes a hardwire charger.

HARDWARE INCLUDED (1) Safety Tether

(1) Silicon sleeve for USB waterproof connection

(4) Small zip ties

(4) Large zip ties

HOLDER DIMENSIONS Height Range: 5.625" - 6.625"

Max Width: 3.125"

Max Depth: .7"

BALL/SOCKET SIZE B Size (1")

WEIGHT CAPACITY 2 lbs

MATERIALS High strength composite

Stainless steel

PACKAGING TYPE Retail Box

POWER SPECIFICATIONS Input Power:5V-2A; 9V-1.67A

Output: 5W / 7.5W / 10W

Conversion Efficiency: 85% Max

Transmitting Distance: 5-8mm

Working Frequency: 110-205KHZ

Product Standard: WPC v.1.2.4

QI Compatible

Compatible with QC2.0/QC3.0 power supplies

CERTIFICATIONS FCC, IC, CE, e-Mark, WEEE, RCM, and RoHS Compliant

WARRANTY STATUS 1 year warranty

COMPATIBLE DEVICES

Apple Blackberry LG Nokia Galaxy Note 5 Galaxy S8 Mi Mix 2S

iPhone 11 Evolve X G6 8 Sirocco Galaxy Note 8 Galaxy S8+ Mi Mix 3

iPhone 11 Pro Google G6+ 9 PureView Galaxy Note 9 Galaxy S9 ZTE

iPhone 11 Pro Max Pixel 3 G7 ThinQ Panasonic Galaxy S10 Galaxy S9+ Axon 10 Pro

iPhone 8 Pixel 3 XL G8 ThinQ Eluga X1 Pro Galaxy S10 5G Sony Axon 9 Pro

iPhone 8 Plus Pixel 4 G8S ThinQ Razer Galaxy S10+ Xperia XZ2

iPhone X Pixel 4 XL V30 Phone 2 Galaxy S6 Xperia XZ3

iPhone Xr Huawei V35 ThinQ Samsung Galaxy S6 Edge+ Xiaomi

iPhone Xs Mate 20 Pro V40 ThinQ Galaxy Note 10 Galaxy S7 Active Mi 9

iPhone Xs Max P30 Pro V50 ThinQ Galaxy Note 10 Plus Galaxy S7 Edge Mi 9 Explorer
