Descriere
OVERVIEW

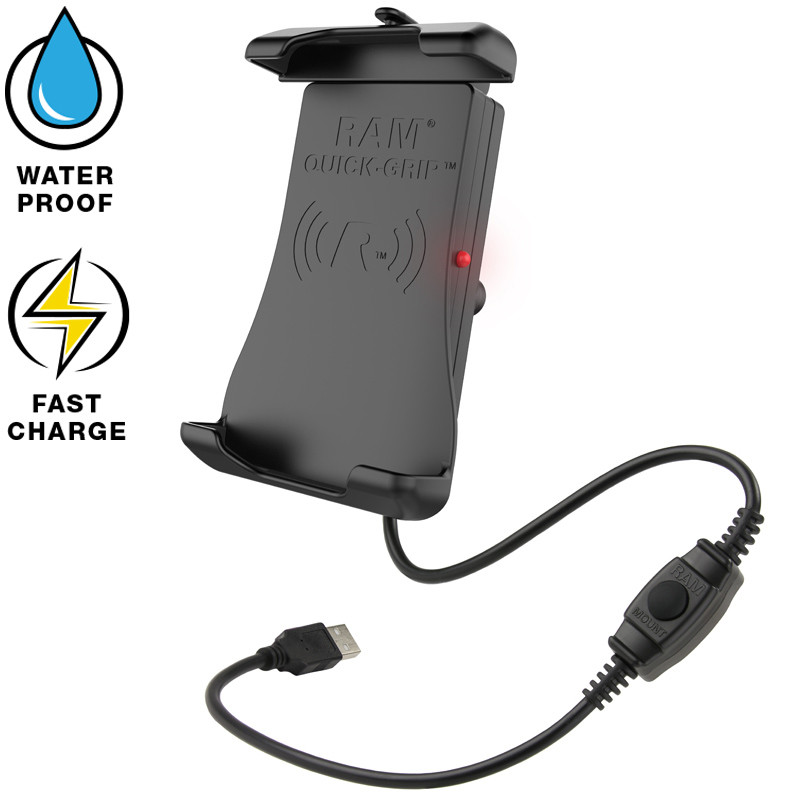

The RAM® Quick-Grip™ Wireless is a patented, universal water resistant wireless charging cradle for phones. As part of the spring-loaded RAM® Quick-Grip™ family, this cradle allows for single-handed placement and removal of your phone while taking advantage of Qi wireless phone charging. Both the top and bottom cups feature rubber to help hold your phone firmly in place. To insert your device, use your phone to push the top cup upward and then gently place your device against the cradle for a secure fit. This Qi wireless charging cradle ensures your compatible phone charges as long as it’s within the listed compatible dimensions. For added security and peace of mind, a device tether is included that’s recommended for outdoor applications. This RAM® Quick-Grip™ Wireless kit for vehicles includes a B size diamond base featuring a 1” rubber ball – perfect for attaching to your choice of B size RAM® double socket arm. The connected Type-A male pigtail connector features an in-line switch that allows you to turn off the wireless charging module when not in use. For in-vehicle charging, attach the pigtail to the included 1.2m Type-A male to Type-A female extension cable.
HARDWARE INCLUDED (1) Safety Tether
(1) Silicon sleeve for USB waterproof connection
(4) Small zip ties
(2) Large zip ties
HOLDER DIMENSIONS Height Range: 5.625" - 6.625"
Max Width: 3.125"
Max Depth: .7"
BALL/SOCKET SIZE B Size (1")
WEIGHT CAPACITY 2 lbs
MATERIALS High strength composite
Stainless steel
PACKAGING TYPE Retail Box
POWER SPECIFICATIONS Input Power:5V-2A; 9V-1.67A
Output: 5W / 7.5W / 10W
Conversion Efficiency: 85% Max
Transmitting Distance: 5-8mm
Working Frequency: 110-205KHZ
Product Standard: WPC v.1.2.4
QI Compatible
Compatible with QC2.0/QC3.0 power supplies
CERTIFICATIONS FCC, IC, CE, e-Mark, WEEE, RCM, and RoHS Compliant
WEIGHT 0.71 lbs.
WARRANTY STATUS 1 year warranty
COMPATIBLE DEVICES
Apple Blackberry LG Nokia Samsung Galaxy S6 Edge+ Xiaomi
iPhone 11 Evolve X G6 8 Sirocco Galaxy Note 10 Galaxy S7 Active Mi 9
iPhone 11 Pro Google G6+ 9 PureView Galaxy Note 10 Plus Galaxy S7 Edge Mi 9 Explorer
iPhone 11 Pro Max Pixel 3 G7 ThinQ Panasonic Galaxy Note 5 Galaxy S8 Mi Mix 2S
iPhone 8 Pixel 3 XL G8 ThinQ Eluga X1 Pro Galaxy Note 8 Galaxy S8+ Mi Mix 3
iPhone 8 Plus Pixel 4 G8S ThinQ Razer Galaxy Note 9 Galaxy S9
iPhone X Pixel 4 XL V30 Phone 2 Galaxy S10 Galaxy S9+
iPhone Xr Huawei V35 ThinQ Sony Galaxy S10 5G ZTE
iPhone Xs Mate 20 Pro V40 ThinQ Xperia XZ2 Galaxy S10+ Axon 10 Pro
iPhone Xs Max P30 Pro V50 ThinQ Xperia XZ3 Galaxy S6 Axon 9 Pro
